DIESEL

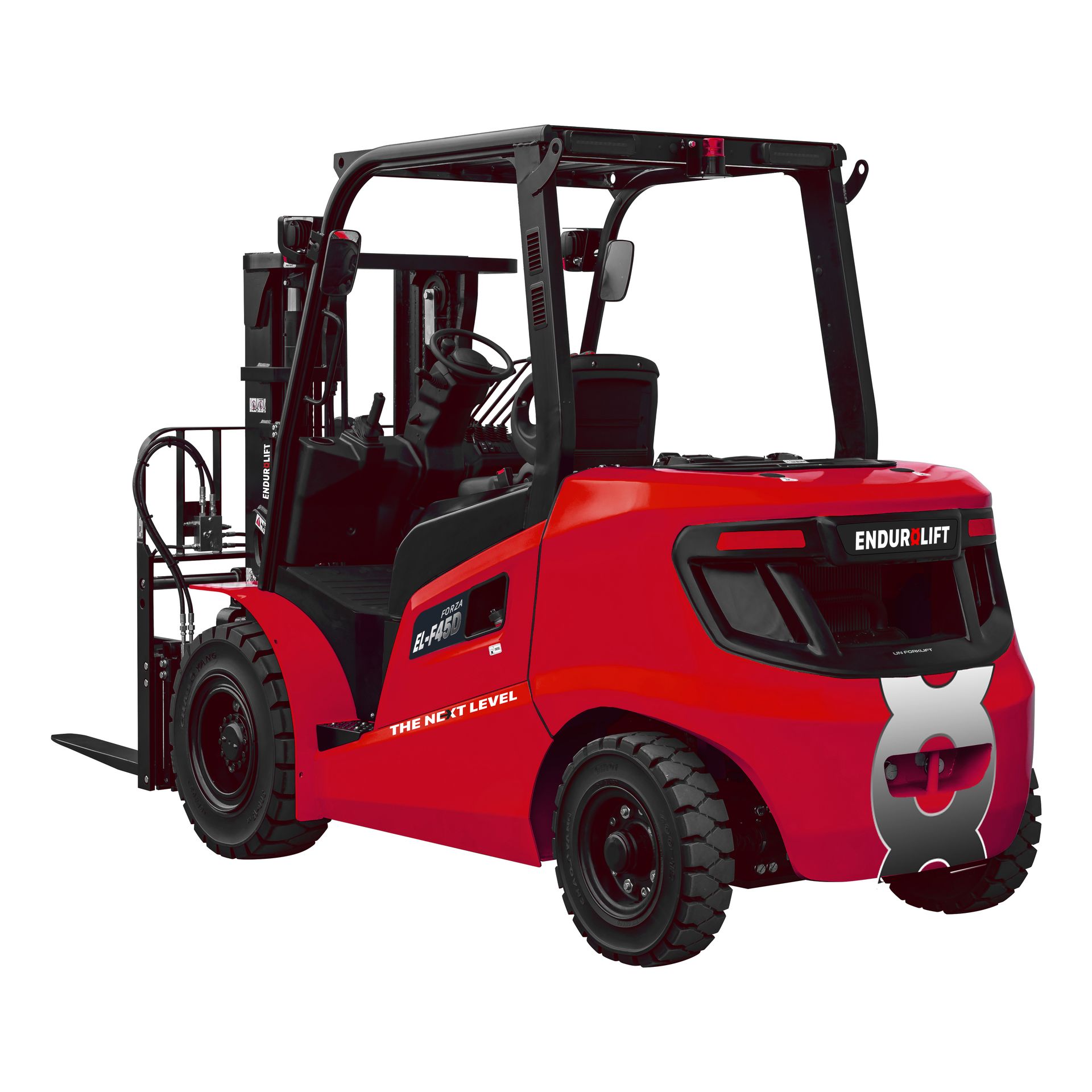

Endurolift EL-F45D
MODEL EL-F45D
BEST FOR:Outdoor
Reliable 4.5-ton diesel forklift delivering efficient performance in demanding environments.
CAPACITY
4.5T
LIFT HEIGHT
4.5m
POWER
Diesel
Backed by Forklift Handling, recognised on the Financial Times Africa's Fastest Growing Companies list.
Interested in the Endurolift EL-F45D?ENQUIRE ABOUT Endurolift EL-F45D
OVERVIEW
Six-cylinder power for heavy outdoor handling
The Endurolift EL-F45D FORZA is a heavy-duty 4.5-ton diesel forklift configured with a 4,500 mm lift height for demanding outdoor material handling. Its Mitsubishi S6S six-cylinder engine produces 52 kW at 2,300 rpm and is paired with hydraulic transmission offering two forward stages and one reverse stage. Rated to handle 4,500 kg at a 500 mm load centre, the truck records travel speeds of 25 km/h loaded and 26 km/h unloaded. A 2,930 mm outside turning radius, 33% maximum gradeability at full load and 110-litre fuel tank support intensive industrial applications.
KEY FEATURES
4,500 kg rated capacity at a 500 mm load centre
4,500 mm approved configured lift height
Mitsubishi S6S six-cylinder diesel engine
52 kW rated output at 2,300 rpm
Hydraulic transmission with two forward stages and one reverse stage
25 km/h loaded and 26 km/h unloaded travel speed
33% maximum gradeability at full load
110-litre fuel tank and 2,930 mm outside turning radius
SPECIFICATIONS
FULL TECHNICAL DATA
Model
FD45T-FJM2
Power Type
Diesel
Rated Load Capacity
Q(kg)
4500
Rated Lift Height
H3(mm)
3000
MITSUBISHI Engine
kW
52
Lifting Speed
mm/sec
580
Maximum Gradeability
%
33
Minimum Aisle Width
Ast(mm)
4690
Turning Radius
Wa(mm)
2930
Travel Speed (Full Load/No Load)
km/h
25/26
Lifting Speed (Full Load/No Load)
mm/sec
580/620
Lowering Speed (Full Load/No Load)
mm/sec
300-600
Max.Drawbar Pull (Full Load/No Load)
KN
41/25
Max.Gradeability (Full Load/No Load)
%
33/28
Battery
V/Ah
24/90
Engine Model
S6S
Engine Manufacturer
MITSUBISHI
Rated Output / r.p.m.
kw
52/2300
Rated Torque / r.p.m.
N·m
248/1700
No.of Cylinder
6
Bore x Stroke
mm
94x120
Displacement
L
4.996
Fuel Tank Capacity
L
110
Transmission Type
Hydraulic
Transmission Stage (FWD/RVS)
2/1
Operating Pressure (For Attachments)
Mpa
19
Load Centre
C(mm)
500
Rated Lift Height
H3(mm)
3000
Free Lift Height
H2(mm)
150
Fork Size (L×W×T)
mm
1070x150x50
Mast Tilt Angle (F/R, α°/β°)
deg
6°/12°
Fork Overhang (Wheel Center to Fork Face)
X1(mm)
571
Rear Overhang
X2(mm)
605
Ground Clearance (Bottom of Mast)
H7(mm)
140
Length to Face of Fork (Without Fork)
L1(mm)
3265
Overall Width
B1(mm)
1520
Mast Lowered Height
H1(mm)
2250
Mast Extended Height (With Backrest)
H4(mm)
4250
Overhead Guard Height
H5(mm)
2370（2260）
Turning Radius (Outside)
Wa(mm)
2930
Min.Aisle width for pallets
Ast(mm)
4690
Mast Option RM250 (Wide View Mast) - Max Fork Height
mm
2500
Mast Option RM250 (Wide View Mast) - Load Capacity (4.5t)
kg
4500
Mast Option RM250 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
1990
Mast Option RM250 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
3392
Mast Option RM250 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
3758
Mast Option RM250 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM250 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM250 (Wide View Mast) - Tilt Angle (F/R)
deg
6/12
Mast Option RM250 (Wide View Mast) - Total Weight (FD45T)
kg
6800
Mast Option RM300 (Wide View Mast) - Max Fork Height
mm
3000
Mast Option RM300 (Wide View Mast) - Load Capacity (4.5t)
kg
4500
Mast Option RM300 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2240
Mast Option RM300 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
3892
Mast Option RM300 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
4258
Mast Option RM300 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM300 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM300 (Wide View Mast) - Tilt Angle (F/R)
deg
6/12
Mast Option RM330 (Wide View Mast) - Max Fork Height
mm
3300
Mast Option RM330 (Wide View Mast) - Load Capacity (4.5t)
kg
4500
Mast Option RM330 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2390
Mast Option RM330 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
4192
Mast Option RM330 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
4558
Mast Option RM330 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM330 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM330 (Wide View Mast) - Tilt Angle (F/R)
deg
6/12
Mast Option RM330 (Wide View Mast) - Total Weight (FD45T)
kg
6880
Mast Option RM350 (Wide View Mast) - Max Fork Height
mm
3500
Mast Option RM350 (Wide View Mast) - Load Capacity (4.5t)
kg
4500
Mast Option RM350 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2490
Mast Option RM350 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
4392
Mast Option RM350 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
4758
Mast Option RM350 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM350 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM350 (Wide View Mast) - Tilt Angle (F/R)
deg
6/12
Mast Option RM350 (Wide View Mast) - Total Weight (FD45T)
kg
6930
Mast Option RM370 (Wide View Mast) - Max Fork Height
mm
3700
Mast Option RM370 (Wide View Mast) - Load Capacity (4.5t)
kg
4500
Mast Option RM370 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2590
Mast Option RM370 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
4592
Mast Option RM370 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
4958
Mast Option RM370 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM370 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM370 (Wide View Mast) - Tilt Angle (F/R)
deg
6/12
Mast Option RM370 (Wide View Mast) - Total Weight (FD45T)
kg
6980
Mast Option RM400 (Wide View Mast) - Max Fork Height
mm
4000
Mast Option RM400 (Wide View Mast) - Load Capacity (4.5t)
kg
4500
Mast Option RM400 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2790
Mast Option RM400 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
4892
Mast Option RM400 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
5258
Mast Option RM400 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM400 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM400 (Wide View Mast) - Tilt Angle (F/R)
deg
6/12
Mast Option RM400 (Wide View Mast) - Total Weight (FD45T)
kg
7200
Mast Option RM425 (Wide View Mast) - Max Fork Height
mm
4250
Mast Option RM425 (Wide View Mast) - Load Capacity (4.5t)
kg
4500
Mast Option RM425 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2915
Mast Option RM425 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
5142
Mast Option RM425 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
5508
Mast Option RM425 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM425 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM425 (Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option RM425 (Wide View Mast) - Total Weight (FD45T)
kg
7350
Mast Option RM450 (Wide View Mast) - Max Fork Height
mm
4500
Mast Option RM450 (Wide View Mast) - Load Capacity (4.5t)
kg
4300 *4500
Mast Option RM450 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
3040
Mast Option RM450 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
5392
Mast Option RM450 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
5758
Mast Option RM450 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM450 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM450 (Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option RM450 (Wide View Mast) - Total Weight (FD45T)
kg
7420
Mast Option RM475 (Wide View Mast) - Max Fork Height
mm
4750
Mast Option RM475 (Wide View Mast) - Load Capacity (4.5t)
kg
4200 *4500
Mast Option RM475 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
3165
Mast Option RM475 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
5642
Mast Option RM475 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
6008
Mast Option RM475 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM475 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM475 (Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option RM475 (Wide View Mast) - Total Weight (FD45T)
kg
7450
Mast Option RM500 (Wide View Mast) - Max Fork Height
mm
5000
Mast Option RM500 (Wide View Mast) - Load Capacity (4.5t)
kg
4000 *4200
Mast Option RM500 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
3290
Mast Option RM500 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
5892
Mast Option RM500 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
6258
Mast Option RM500 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM500 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM500 (Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option RM500 (Wide View Mast) - Total Weight (FD45T)
kg
7500
Mast Option RM550 (Wide View Mast) - Max Fork Height
mm
5500
Mast Option RM550 (Wide View Mast) - Load Capacity (4.5t)
kg
3600 *4000
Mast Option RM550 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
3590
Mast Option RM550 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
6392
Mast Option RM550 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
6758
Mast Option RM550 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM550 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM550 (Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option RM550 (Wide View Mast) - Total Weight (FD45T)
kg
7750
Mast Option RM600 (Wide View Mast) - Max Fork Height
mm
6000
Mast Option RM600 (Wide View Mast) - Load Capacity (4.5t)
kg
3300 *3600
Mast Option RM600 (Wide View Mast) - Lowered Height (4.5-5.0t)
mm
3840
Mast Option RM600 (Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
6892
Mast Option RM600 (Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
7258
Mast Option RM600 (Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
135
Mast Option RM600 (Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
135
Mast Option RM600 (Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option RM600 (Wide View Mast) - Total Weight (FD45T)
kg
7900
Mast Option TFM400 (3-Stage Full Free Wide View Mast) - Max Fork Height
mm
4000
Mast Option TFM400 (3-Stage Full Free Wide View Mast) - Load Capacity (4.5t)
kg
4350 *4500
Mast Option TFM400 (3-Stage Full Free Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2080
Mast Option TFM400 (3-Stage Full Free Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
4892
Mast Option TFM400 (3-Stage Full Free Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
5258
Mast Option TFM400 (3-Stage Full Free Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
1279
Mast Option TFM400 (3-Stage Full Free Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
797
Mast Option TFM400 (3-Stage Full Free Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option TFM400 (3-Stage Full Free Wide View Mast) - Total Weight (FD45T)
kg
7650
Mast Option TFM435 (3-Stage Full Free Wide View Mast) - Max Fork Height
mm
4350
Mast Option TFM435 (3-Stage Full Free Wide View Mast) - Load Capacity (4.5t)
kg
4350 *4500
Mast Option TFM435 (3-Stage Full Free Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2190
Mast Option TFM435 (3-Stage Full Free Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
5242
Mast Option TFM435 (3-Stage Full Free Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
5608
Mast Option TFM435 (3-Stage Full Free Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
1389
Mast Option TFM435 (3-Stage Full Free Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
907
Mast Option TFM435 (3-Stage Full Free Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option TFM435 (3-Stage Full Free Wide View Mast) - Total Weight (FD45T)
kg
7850
Mast Option TFM450 (3-Stage Full Free Wide View Mast) - Max Fork Height
mm
4500
Mast Option TFM450 (3-Stage Full Free Wide View Mast) - Load Capacity (4.5t)
kg
4350 *4500
Mast Option TFM450 (3-Stage Full Free Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2240
Mast Option TFM450 (3-Stage Full Free Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
5392
Mast Option TFM450 (3-Stage Full Free Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
5758
Mast Option TFM450 (3-Stage Full Free Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
1439
Mast Option TFM450 (3-Stage Full Free Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
957
Mast Option TFM450 (3-Stage Full Free Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option TFM450 (3-Stage Full Free Wide View Mast) - Total Weight (FD45T)
kg
7950
Mast Option TFM470 (3-Stage Full Free Wide View Mast) - Max Fork Height
mm
4700
Mast Option TFM470 (3-Stage Full Free Wide View Mast) - Load Capacity (4.5t)
kg
4000 *4200
Mast Option TFM470 (3-Stage Full Free Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2305
Mast Option TFM470 (3-Stage Full Free Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
5592
Mast Option TFM470 (3-Stage Full Free Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
5958
Mast Option TFM470 (3-Stage Full Free Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
1504
Mast Option TFM470 (3-Stage Full Free Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
1022
Mast Option TFM470 (3-Stage Full Free Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option TFM470 (3-Stage Full Free Wide View Mast) - Total Weight (FD45T)
kg
8100
Mast Option TFM500 (3-Stage Full Free Wide View Mast) - Max Fork Height
mm
5000
Mast Option TFM500 (3-Stage Full Free Wide View Mast) - Load Capacity (4.5t)
kg
3800 *4000
Mast Option TFM500 (3-Stage Full Free Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2440
Mast Option TFM500 (3-Stage Full Free Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
5892
Mast Option TFM500 (3-Stage Full Free Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
6258
Mast Option TFM500 (3-Stage Full Free Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
1639
Mast Option TFM500 (3-Stage Full Free Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
1157
Mast Option TFM500 (3-Stage Full Free Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option TFM500 (3-Stage Full Free Wide View Mast) - Total Weight (FD45T)
kg
8350
Mast Option TFM540 (3-Stage Full Free Wide View Mast) - Max Fork Height
mm
5400
Mast Option TFM540 (3-Stage Full Free Wide View Mast) - Load Capacity (4.5t)
kg
3400 *3700
Mast Option TFM540 (3-Stage Full Free Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2590
Mast Option TFM540 (3-Stage Full Free Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
6292
Mast Option TFM540 (3-Stage Full Free Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
6658
Mast Option TFM540 (3-Stage Full Free Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
1789
Mast Option TFM540 (3-Stage Full Free Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
1307
Mast Option TFM540 (3-Stage Full Free Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option TFM540 (3-Stage Full Free Wide View Mast) - Total Weight (FD45T)
kg
8160
Mast Option TFM600 (3-Stage Full Free Wide View Mast) - Max Fork Height
mm
6000
Mast Option TFM600 (3-Stage Full Free Wide View Mast) - Load Capacity (4.5t)
kg
3000 *3400
Mast Option TFM600 (3-Stage Full Free Wide View Mast) - Lowered Height (4.5-5.0t)
mm
2790
Mast Option TFM600 (3-Stage Full Free Wide View Mast) - Extended Height Without Backrest (4.5-5.0t)
mm
6892
Mast Option TFM600 (3-Stage Full Free Wide View Mast) - Extended Height With Backrest (4.5-5.0t)
mm
7258
Mast Option TFM600 (3-Stage Full Free Wide View Mast) - Free Lift Without Backrest (4.5-5.0t)
mm
1989
Mast Option TFM600 (3-Stage Full Free Wide View Mast) - Free Lift With Backrest (4.5-5.0t)
mm
1507
Mast Option TFM600 (3-Stage Full Free Wide View Mast) - Tilt Angle (F/R)
deg
6/6
Mast Option TFM600 (3-Stage Full Free Wide View Mast) - Total Weight (FD45T)
kg
8900
Tyre (Front x 2)
mm
300-15-18PR
Tyre (Rear x 2)
mm
7.00-12-12PR
Front Tread
B2(mm)
1232
Rear Tread
B3(mm)
1190
Wheelbase
Y(mm)
2100
Total Weight
kg
6510
Front Axle Weight Distribution (Full Load)
kg
9840
Rear Axle Weight Distribution (Full Load)
kg
1170
Front Axle Weight Distribution (No Load)
kg
3080
Rear Axle Weight Distribution (No Load)
kg
3430
GALLERY
Endurolift EL-F45D IN DETAIL
ENQUIRE
GET A QUOTE ON THE Endurolift EL-F45D
No prices online. Tell us your application and we'll respond with a tailored quote.
Serviced by Forklift Handling, Johannesburg. Response within an hour.
COMPARE MODELS
